Aluminium 2017 Forgings

Anucha Metals, a reliable metal forging supplier in Bangkok, Thailand, provides high-performance Aluminium 2017 Forgings designed for precision and strength. As a heat-treatable aluminium-copper alloy, 2017 forgings have superior mechanical properties and excellent machinability. Our 2017 forgings suit applications where toughness and stress resistance are essential. With strong forging capabilities and strict quality control, Anucha Metals offers custom and standard forgings that meet international aerospace and automotive standards. We supply various shapes and sizes for high-load components in demanding industries.

Aluminum 2017 Press Forging Manufacturer in Pattaya, Aluminium 2017 Compression Forging Rayong, Aluminium Alloy 2017 Impression Die Forging Size Chart, Aluminum Alloy UNS A92017 Upset Forging Dealer in Rayong, Al 2017 Open Die Forging Price in Thailand, Stockist of Aluminum 2017 in Chiang Mai, Aluminium Alloy Closed Die Forging Price List in Bangkok, Aluminum Alloy UNS A92017Open Die Forging Weight Chart, DIN 3.1325 Aluminium 2017 Closed Die Forging Exporter in Pattaya, Al 2017 Closed Die Hammer Forging Supplier in Thailand

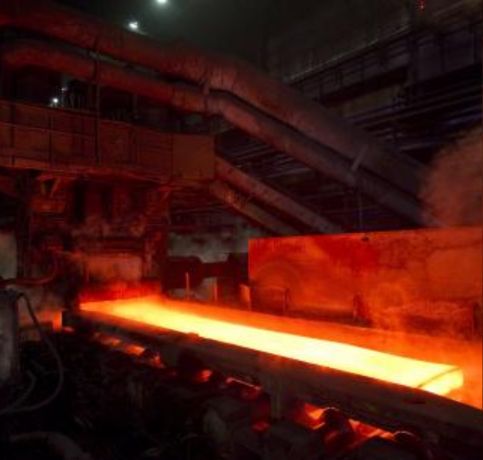

Aluminium 2017 Cold Forging

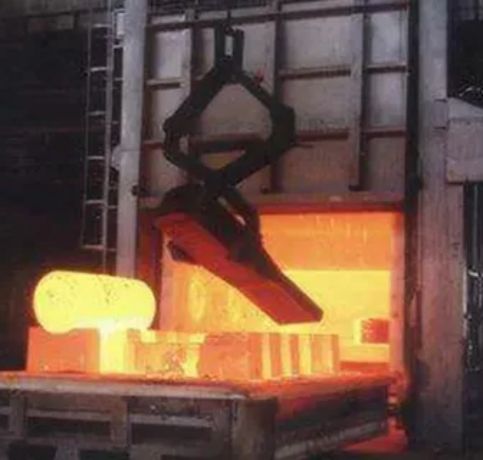

Aluminium 2017 Hot Forging

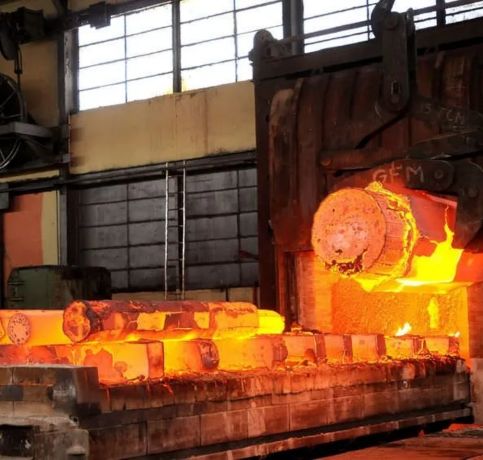

Aluminium 2017 Rolled Forging

What is Aluminium 2017 Forgings?

Aluminium 2017 comprises about 91.5% aluminium, 4% copper, 0.7% manganese, and 0.5% magnesium. This heat-treatable alloy provides high tensile strength (390–500 MPa), moderate ductility, and good machinability. The yield strength is around 260 MPa, and the alloy performs well under high mechanical loads. Although it has lower corrosion resistance, it can be coated or anodized. It maintains structural integrity after forging, making it suitable for precision parts.

Aluminium 2017 Open Die Hammer Forging Stockist in Bangkok, Aluminum 2017 Impression Die Forging Distributor in Thailand, Aluminium 2017 Cold Forging Stockist Nonthaburi, 2017 Aluminium Alloy Open Die Forging Exporter in Thailand, Aluminum Alloy 2017 Compression Forging Price in Nonthaburi, 2017 Al Upset Forging Dimensions Chiang Mai, Aluminium 2017 Forgings Supplier in Thailand, Al 2017 Open Die Hammer Forging Supplier in Chiang Mai, UNS A92017 Aluminium Alloy Press Forgings in Pattaya

Aluminium 2017 Forgings Specifications

Standards : ASTM B247, B247

Temper : T6 T651 T6511

Specification : DIN, ASTM, BS and all International Standards

Flat bar blocks : up to 27″ width and 15,000 lbs.

Cylinders and sleeves : up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs : up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings : up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts : up to 144″ maximum length and 20,000 lbs.

Aluminium 2017 Forgings Chemical Compositions

Grade	Al	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others Each	Other Total
2017	Rem	0.20-0.8	0.7 max	3.5-4.5	0.40-1.0	0.40-0.8	0.10 max	0.25 max	0.15 max	0.05 max	0.15 max

You Need Our Support, to Have Any Projects?

Test Certificate

Why Anucha Metals?

Packaging

Aluminium 2017 Forgings Mechanical Properties

Material	Condition	Tensile Strength (N/mm²) min		Yield Strength		Elongation in 4D %
		ksi	Mpa	ksi	Mpa
2017	2017-T4 Bar	55	379	32	221	12

Aluminium 2017 Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlCu4MgSi	AU4G	3.1325	A92017	AlCu4MgSi	2017	AlCuMg1

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 2017 Forgings Types

Aluminium Alloy 2017 Hot Forging Exporter in Rayong, Aluminium 2017 Forgings Manufacturer in Nonthaburi, Aluminium Alloy 2017 Forgings Industrial Forgings Distributor Exporter in Thailand, DIN 3.1325 Aluminum Alloy 2017 Seamless Rolled Forging Supplier in Chiang Mai, Al 2017 Forgings Cold Forging Size Chart in Bangkok, Aluminium 2017 Compression Forging Size Chart in Thailand, UNS A92017 Aluminium Open Die Forging Stockist in Chiang Mai, ASTM B221 Al Forging Price List Pattaya, Aluminum 2017 Press Forging Supplier in Thailand

Frequently Asked Questions (FAQ)

Can Aluminum 2017 be used for high-temperature forging applications?

Aluminum 2017 is suitable for forging but has limited high-temperature resistance. For high-temperature forging applications, consider alloys with better heat resistance, like 2219 or 2618.

How does the workability of Aluminum 2017 affect the forging process?

The workability of Aluminum 2017, being moderate, affects forging by requiring precise temperature control (400–480°C) to prevent cracking and achieve proper plastic deformation, making it suitable for intricate shapes with care.

What are the advantages of using Aluminum 2017 for custom forgings?

Aluminum 2017 offers high strength, excellent machinability, good corrosion resistance, and ease of welding, making it ideal for custom forgings in aerospace, military, and high-performance applications.

Aluminium 2017 Forgings Uses

Aluminium 2017 Forgings are commonly used in aerospace fittings, structural aircraft parts, rivets, and high-stress automotive components. They are also excellent for gears, shafts, and precision-engineered machine parts. The high fatigue resistance makes them suitable for rotating parts in turbines and power systems. While less resistant to corrosion, they work well in dry or coated environments. Their excellent machinability and strength make them perfect for complex components in tools, jigs, and frames where reliability and precision are critical.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
