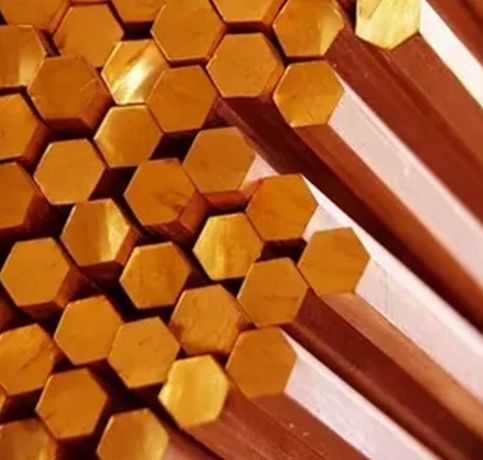

Anucha Metals is a well-respected manufacturer and supplier of Copper Nickel Hex Bars based in Bangkok, Thailand. They pride themselves on delivering top-notch products that are built to perform even in the toughest conditions. These Copper Nickel Hex Bars are renowned for their impressive resistance to seawater corrosion, along with their durability and strength. Crafted with precision using cutting-edge technology and rigorous quality standards, these bars are highly sought after for their versatility, exact dimensions, and long-lasting service life. Anucha Metals has gained a solid reputation globally, serving various industries such as marine, oil & gas, power generation, and chemical processing as a reliable source for Copper Nickel Hex Bars.
The composition of Copper Nickel Hex Bars typically includes copper (60–90%) and nickel (10–40%), with small amounts of iron and manganese added to boost their mechanical strength and resistance. They excel in resisting seawater corrosion, stress corrosion cracking, and biofouling. On the mechanical side, these hex bars provide good tensile and yield strength, toughness, and ductility, along with excellent thermal conductivity and stability. Thanks to their superior weldability, machinability, and formability, Copper Nickel Hex Bars promise long-lasting performance and reliability, making them ideal for marine, industrial, and structural applications where corrosion resistance and durability are crucial.
| Properties | Description |
|---|---|
| Standard | ASTM B 111 |
| Range | 5 mm To 500 mm thick in 100 mm TO 6000 mm |
| Wire Range | 50 Swg. to 4 Swg. |
| Length | 100 mm to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh |
| Application | Sea water pipework, Offshore fire water systems, Heat exchangers and condensers, Sheathing of legs and risers on offshore platforms and boat hulls, Hydraulic lines, Fish cages for aquaculture, Desalination units. |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| CUNI Hex Bar | Size(mm) | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 | 45 | 50 | 56 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WT / mtr (KG) | 2.05 | 2.59 | 2.49 | 3.87 | 5 | 6.27 | 7.2 | 8.19 | 10.37 | 11.55 | 12.8 | 16.2 | 20 | 25.08 | |
| WT / feet (KG) | 0.62 | 0.79 | 0.76 | 1.18 | 1.52 | 1.91 | 2.19 | 2.5 | 3.16 | 3.52 | 3.9 | 4.94 | 6.1 | 7.65 |
| Hex bar – metric sizes and weights | ||
|---|---|---|
| Size | KG’s / metre | Standard length (m) |
| 13 x 5 | 0.46 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 10 x 3 | 0.24 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, copper-nickel hex bars are customizable. They can be produced in various sizes, lengths, and finishes according to specific customer requirements. Customization options may include heat treatments, surface finishes, and alloy compositions.
Across various industries that demand corrosion resistance, durability, and strength, Copper Nickel Hex Bars are widely utilized. In the marine sector, they find applications in shipbuilding, propeller shafts, seawater piping systems, and condensers. The oil & gas industry uses them in offshore platforms, subsea pipelines, and desalination plants. In power generation, they are essential for cooling systems, heat exchangers, and condenser tubes. The chemical and petrochemical sectors depend on them for handling corrosive fluids. Additionally, Copper Nickel Hex Bars are employed in architectural frameworks, food processing equipment, and structural applications, ensuring efficiency and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
