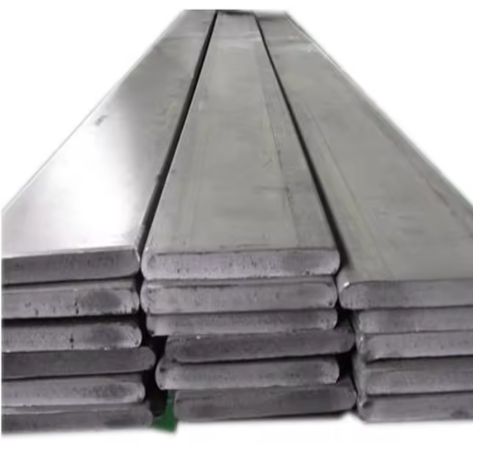

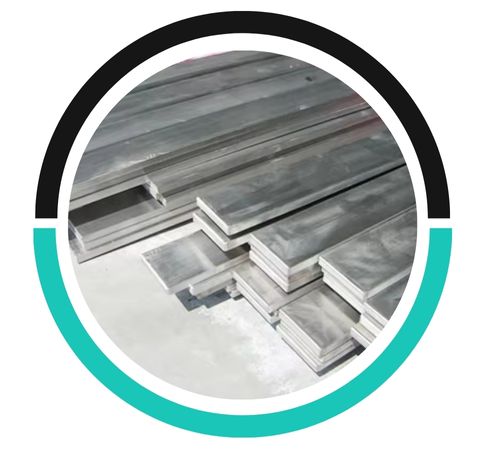

Anucha Metals, a reputable manufacturer and supplier located in Bangkok, Thailand, specializes in high-quality Titanium Flat Bars that adhere to global industrial standards. These bars are celebrated for their remarkable strength-to-weight ratio, resistance to corrosion, and long-lasting durability, making them perfect for tough environments. Crafted with precision and rigorous quality control, Titanium Flat Bars from Anucha Metals guarantee outstanding performance across structural, mechanical, and chemical processing sectors. With a strong focus on innovation and customer satisfaction, the company delivers dependable solutions for aerospace, marine, medical, and engineering applications, establishing itself as a go-to choice for titanium products both locally and internationally.
These Titanium Flat Bars are primarily made of titanium, with small amounts of elements like aluminum, vanadium, oxygen, and iron, depending on the specific grade. This unique composition provides excellent corrosion resistance, low density, and great biocompatibility. Mechanically, these bars boast impressive tensile strength, ranging from 240 MPa to over 1000 MPa, depending on their condition and grade, while still offering good ductility and toughness. They also feature a high melting point, resistance to fatigue, and exceptional performance in both oxidizing and reducing environments, making them ideal for critical structural and chemical processing applications.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Flat Bars are commonly used in the aerospace, medical, and chemical industries for components like frames, brackets, and heat exchangers due to their strength and corrosion resistance.
Yes, Titanium Flat Bars can be welded, but they require precise control over heat to avoid contamination and maintain the material’s strength and corrosion resistance.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@anuchametal.com
Titanium Flat Bars are extensively utilized across various industries due to their distinctive properties. In aerospace, they are used for structural components, engine parts, and landing gear because of their lightweight nature and strength. The marine industry incorporates them in shipbuilding, offshore platforms, and desalination plants, thanks to their resistance to seawater corrosion. In the medical field, they find applications in surgical instruments, orthopedic implants, and dental devices due to their biocompatibility. Furthermore, Titanium Flat Bars are essential in chemical processing plants, the oil and gas sector, and automotive engineering, providing long-lasting reliability in high-performance settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
