Anucha Metals, a reputable manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Monel Forgings tailored to meet the rigorous demands of various industries. These forgings are celebrated for their remarkable corrosion resistance, exceptional strength, and long-lasting durability. Crafted under stringent quality standards and utilizing advanced techniques, Anucha Metals ensures that their Monel Forgings deliver outstanding performance even in the toughest environments, including marine, chemical, petrochemical, and aerospace sectors. Their resilience, adaptability, and extended service life make them a go-to choice for critical engineering and industrial applications around the globe.
Monel Forgings are primarily made up of nickel and copper, with trace amounts of iron, manganese, carbon, and silicon to boost their strength and stability. This unique composition grants them impressive resistance to seawater, acids, and alkalis, ensuring they stand the test of time. On a mechanical level, Monel Forgings showcase excellent tensile strength, high toughness, and hardness, maintaining consistent performance in both high and low temperatures. They also boast superior thermal conductivity, fatigue resistance, and resistance to stress-corrosion cracking, making them ideal for demanding industrial applications where reliability and durability are paramount.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

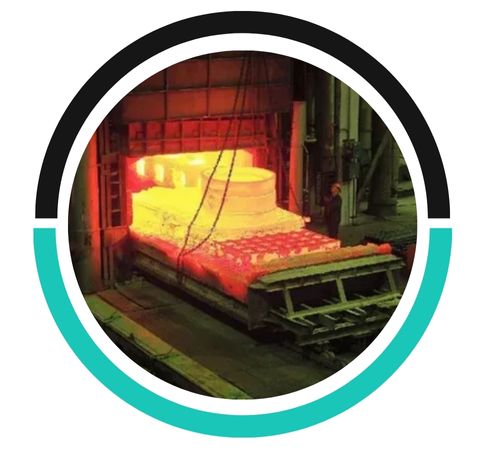

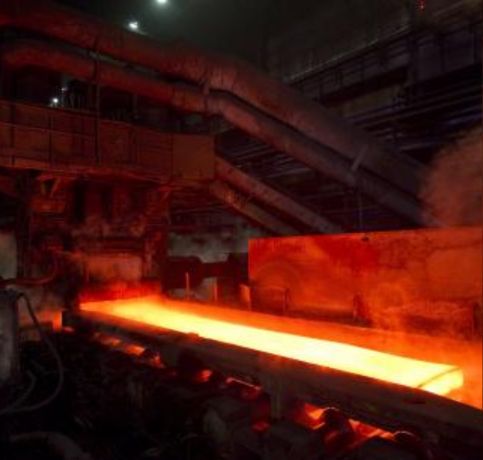

The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.

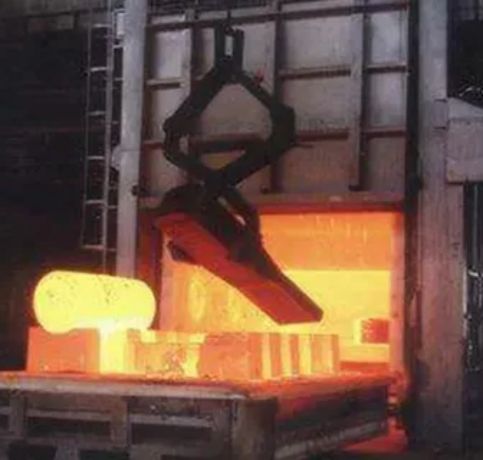

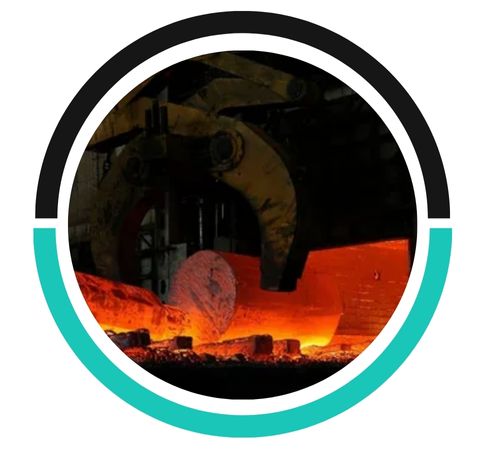

The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
These Monel Forgings find their place in industries that require both high strength and exceptional corrosion resistance. In marine engineering, they are commonly used in seawater valves, shafts, and pump components due to their outstanding saline resistance. The chemical and petrochemical industries rely on them for processing equipment, heat exchangers, and piping systems. In aerospace, they are utilized in fasteners, structural components, and fuel tanks that need to withstand significant stress. Furthermore, Monel Forgings are essential in oil and gas exploration, power generation facilities, and specialized engineering projects where performance in extreme conditions is crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
