Anucha Metals, located in Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of high-quality Carbon Steel Bars and Rods. With a strong focus on creating durable and precisely crafted products, the company serves both local and international markets. The Carbon Steel Bars and Rods from Anucha Metals are produced using cutting-edge technology, ensuring they are dependable, strong, and perform well. These products are known for their versatility and are widely utilized in various industries, including construction, automotive, engineering, and machinery manufacturing. Anucha Metals prioritizes quality, timely delivery, and customer satisfaction, making it a go-to choice for carbon steel solutions.
Carbon Steel Bars and Rods mainly consist of iron and carbon, with the carbon content ranging from 0.05% to 2%. They may also include controlled amounts of alloying elements like manganese, silicon, and sulfur to enhance strength and machinability. These bars boast impressive mechanical properties, such as high tensile strength, good hardness, toughness, and durability. Their machinability and weldability vary with carbon content; lower carbon steels tend to be more ductile and easier to weld, while higher carbon grades provide superior hardness and wear resistance. This balance makes them ideal for a wide range of engineering applications.
| Carbon Steel Bar Standard | ASTM A36, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Carbon Steel Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

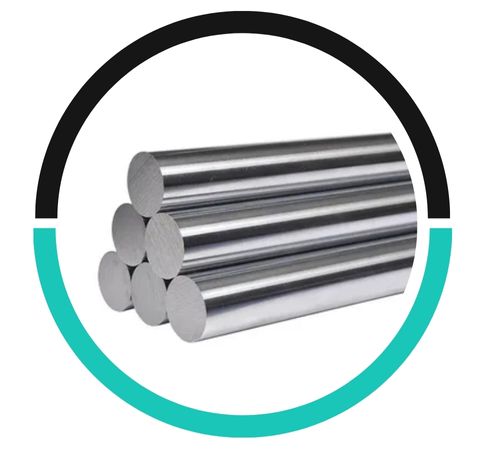

| Carbon Steel Round bar size | Diameter: 3-~800mm |
| Carbon Steel Hex Bar size | 2-100mm A/F |
| CS Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

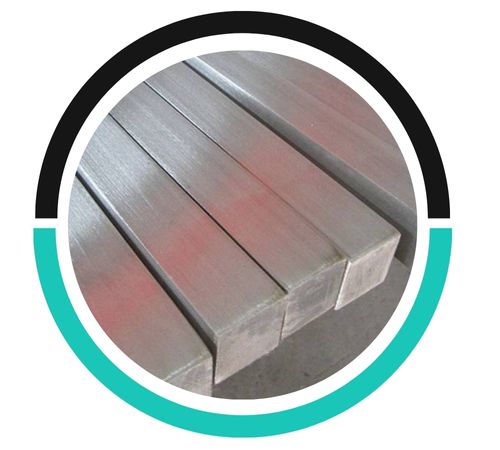

| Carbon Steel Square bar size | 4 to 100mm |
| Carbon Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Carbon Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A36 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| CS Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Carbon Steel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Carbon Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A36 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Carbon T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Carbon Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A36 Type Cold Rolled Bar Technique | Carbon Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| CS Rod Processing | Bar cutting to 650mm |
| Carbon Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Grades | Silicon | Mangenese | Carbon | Phosphorus. | Sulfur. |
|---|---|---|---|---|---|
| En-8D | 0.05/0.35 | 0.70/0.90 | 0.40/0.45 | 0.06 | 0.06 |
| En-9 | 0.50/0.80 | 0.50/0.60 | |||
| SAE 1006 | 0.10/0.30 | 0.25/0.40 | 0.08 max | 0.04 | 0.05 |
| SAE 1008 | 0.30/0.50 | 0.10 max | |||
| SAE 1030 | 0.10/0.40 | 0.60/0.90 | 0.28/0.34 | ||
| SAE 1035 | 0.32/0.38 | ||||
| SAE 1040 | 0.37/0.44 | ||||
| SAE 1010 | 0.10/0.30 | 0.30/0.60 | 0.08/0.13 | ||
| SAE 1018 | 0.60/0.90 | 0.15/0.20 | |||
| SAE 1020 | 0.30/0.60 | 0.18/0.23 | 0.09 | ||
| SAE 1045 | 0.10/0.40 | 0.60/0.90 | 0.40/0.50 | 0.05 | |
| Ck 45 | 0.15/0.35 | 0.50/0.80 | 0.42/0.50 | 0.04 | |
| Ck 55 | 0.60/0.90 | 0.52/0.60 | |||
| Ck 60 | 0.57/0.65 |
| Tensile Strength | Yield Stress, Min, MPa | % Elongation at gauge length 5.65 √Ѕo | Bend Test | ||
| Min, Mpa | |||||
| mm | <20 | 20-40 mm | >40 | min | min |
| mm | mm | ||||
| 410 | 250 | 240 | 230 | 23 | 3t* (*t is 3 times thickness) |
| EN | Normalized | ASTM | AMS | UNS |
|---|---|---|---|---|
| EN 1.0460 | A105n/SA 105n | ASTM A105 | ASME SA 105 | K03504 |
Carbon Steel Bars and Rods are used in industries such as construction, automotive, machinery, and manufacturing for components like shafts, bolts, and structural parts.
Yes, Carbon Steel Bars and Rods can be heat treated to enhance their hardness, strength, and wear resistance, making them suitable for demanding applications.
Thanks to their strength, durability, and cost-effectiveness, Carbon Steel Bars and Rods are extensively used across multiple industries. In construction, they play a crucial role in structural frameworks, reinforcement, and load-bearing components. In the automotive and transportation sectors, they are vital for shafts, axles, and fasteners. The engineering and machinery industries rely on them for manufacturing gears, tools, and mechanical parts. Additionally, sectors like oil and gas, power generation, and heavy equipment manufacturing depend on carbon steel for its reliability in demanding conditions. Their versatility, affordability, and adaptability make them essential in both industrial and commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
