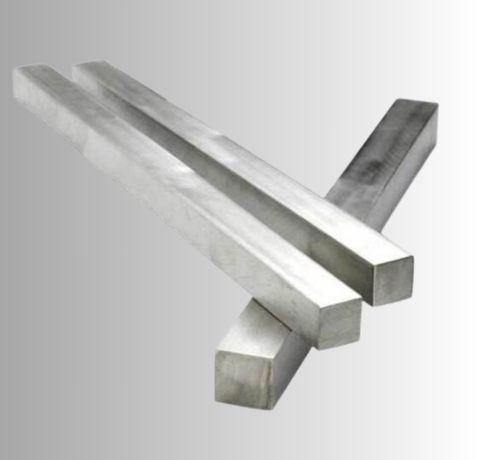

Anucha Metals offers premium Aluminium 5083 Bar and Rods, recognized for their strong performance in marine and heavy-duty applications. Produced in Bangkok, Thailand, our 5083 bars provide excellent corrosion resistance, particularly in seawater and aggressive industrial settings. With high strength and great weldability, Aluminium 5083 is the preferred alloy for shipbuilding, offshore platforms, and military vehicles. Our products come in various dimensions and meet international marine and structural standards.
Aluminium 5083 comprises aluminium (about 92.5%), magnesium (4.0 to 4.9%), manganese (0.4 to 1.0%), and small amounts of chromium and iron. It is a non-heat-treatable alloy that provides high strength, featuring a tensile strength of 275 to 350 MPa and a yield strength of around 200 MPa. The alloy maintains strong mechanical properties even at sub-zero temperatures. It offers superior corrosion resistance in marine and chemical environments and is highly weldable, keeping strength in the heat-affected zone.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| 5083 | Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5083 bars are fully recyclable. Recycling preserves the material's properties, reduces energy consumption, and minimizes environmental impact, making it an eco-friendly choice for sustainable manufacturing.
To maintain Aluminium 5083 bars, regularly clean them with mild detergent and water to prevent corrosion. Avoid abrasive materials, and apply protective coatings if exposed to harsh environments for enhanced durability.
When installing Aluminium 5083 bars and rods, consider proper welding techniques, corrosion protection, accurate measurements, compatibility with other materials, and ensuring proper handling to avoid surface damage or distortion.
Aluminium 5083 Bar and Rods are commonly used in shipbuilding, including hulls, superstructures, and decks because of their corrosion resistance and strength. They are also found in tanks, pressure vessels, LNG storage, and cryogenic applications. In defense, they are utilized in armored vehicles and protective barriers. Industrial applications include structural frameworks, chemical process equipment, and pipelines. Its strength and durability in extreme conditions make it an excellent choice for offshore rigs, road tankers, and coastal infrastructure.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
