Anucha Metals offers aerospace-grade Aluminium 2024 Bar and Rods, known for their high strength and fatigue resistance. Manufactured in Bangkok, Thailand, these bars and rods are heat-treated and stress-relieved, making them appropriate for precision machining and critical load-bearing parts. 2024 is widely used in aerospace, defense, and high-performance automotive applications. Anucha Metals delivers 2024 rods and bars to AMS and ASTM specifications, ensuring performance, structural integrity, and strict tolerances for mission-critical components.
Aluminium 2024 consists of about 90.7% aluminium, 4.4% copper, 1.5% magnesium, and 0.6% manganese. In the appropriate temper, it provides tensile strength up to 470 MPa and yield strength around 325 MPa. The alloy has excellent fatigue resistance, good machinability, and can be heat-treated. Although it has less corrosion resistance, it performs well when coated or anodized. It is ideal for parts exposed to repetitive stress and vibration.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

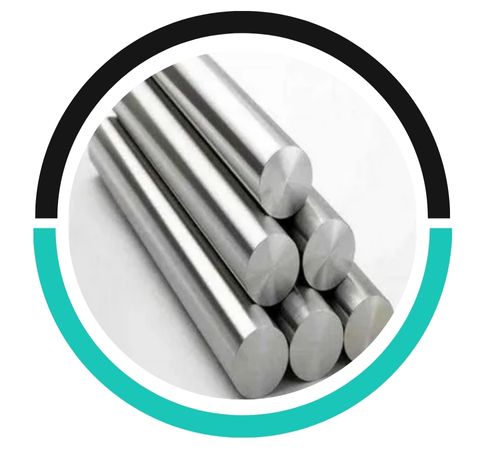

| Aluminium Round Bar Diameter | 0.1-600mm,etc |

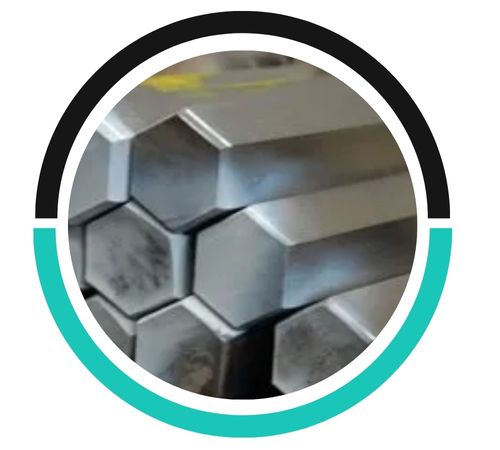

| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |

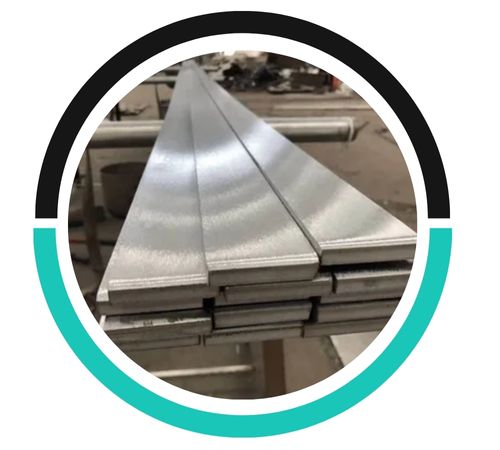

| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 T3511 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Aluminium 2024 T3511 is generally not recommended for welding due to its susceptibility to cracking and reduced strength after welding. However, specialized techniques like TIG welding and using filler materials can be employed with caution.
Yes, Aluminium 2024 T3511 bars are recyclable. Aluminium is highly recyclable without losing quality, making it an eco-friendly material for sustainable manufacturing and reducing environmental impact.
Aluminium 2024 T3511 is prone to corrosion, particularly in harsh environments with high humidity or exposure to saltwater. It is highly susceptible to pitting and stress corrosion cracking, though protective coatings can help mitigate this.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
