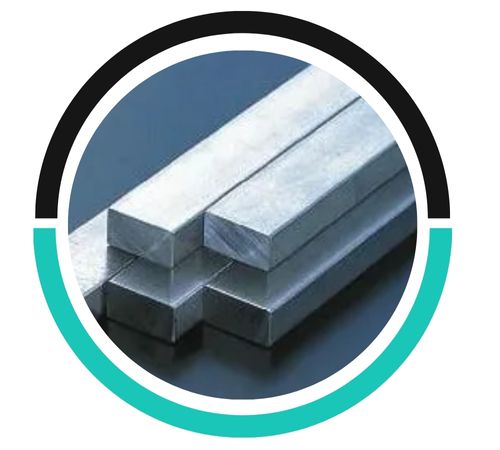

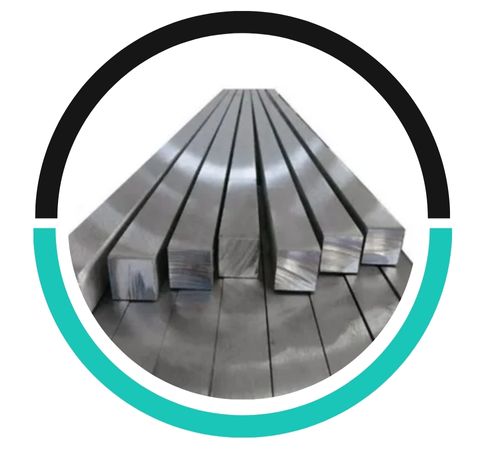

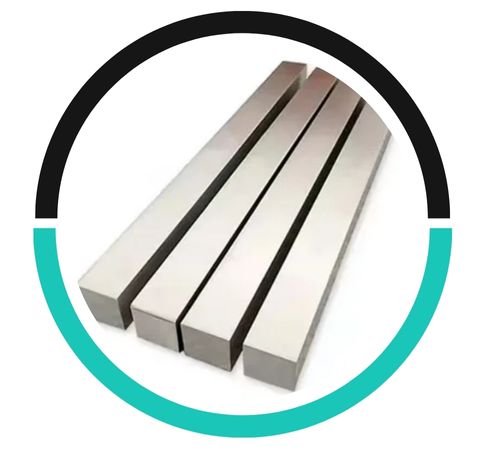

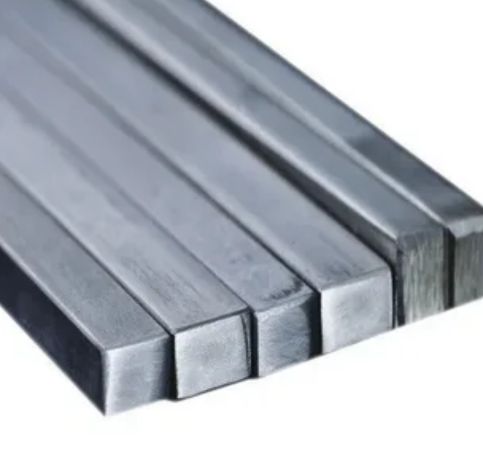

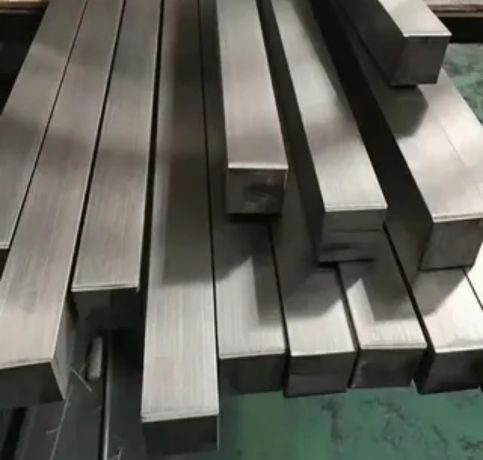

Anucha Metals, a reputable manufacturer and supplier located in Bangkok, Thailand, is renowned for providing top-notch Stainless Steel 904L Square Bars and Rods to both local and global markets. With a strong focus on precision, durability, and adherence to international quality standards, the company ensures that its products are built to perform reliably even in harsh environments. The Stainless Steel 904L Square Bars and Rods are prized for their exceptional corrosion resistance, impressive strength, and toughness. Anucha Metals caters to various industries, including chemical, petrochemical, marine, oil & gas, and construction, guaranteeing long-lasting performance and customer satisfaction through their world-class stainless steel solutions.
These Stainless Steel 904L Square Bars and Rods are made from a blend of chromium, nickel, molybdenum, and copper, featuring low carbon content that provides remarkable resistance to harsh chemicals and chloride-induced corrosion. They excel in resisting sulfuric, phosphoric, and acetic acids. On the mechanical side, these bars and rods boast a tensile strength ranging from 490 to 710 MPa, a yield strength of about 220 MPa, and good elongation, which ensures ductility. They also showcase outstanding toughness, weldability, and fatigue resistance. Capable of withstanding high temperatures and aggressive conditions, Stainless Steel 904L Square Bars and Rods are a reliable choice for demanding industrial and engineering applications.
| Specifications | : | ASTM A276, ASME SA276 / ASTM A479 ASME SA479 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Square Bars | : | Outside Diameter in the range of 4mm to 500mm |
| SS 904L Square Bars | : | 18mm ” 47mm (11/16″ to 1-3/4″) |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM NAME |
| SS 904L | 1.4539 | N08904 | – | 904S13 | – | X1NiCrMoCuN25-20-5 |
| SQUARES | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, we provide stainless steel 904L square bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@anuchametal.com
Stainless Steel 904L Square Rods are known for their exceptional corrosion resistance, high strength, and excellent weldability, making them ideal for harsh environments. They also exhibit good formability, durability, and resistance to pitting and crevice corrosion.
Yes, Stainless Steel 904L Square Bars can be recycled after use. Their high nickel and chromium content make them valuable for recycling, reducing waste and conserving resources.
In industries where durability and corrosion resistance are paramount, Stainless Steel 904L Square Bars and Rods are widely utilized. In the chemical and petrochemical fields, they find applications in heat exchangers, reactors, and storage tanks. The marine sector employs them in shipbuilding, propeller shafts, and seawater cooling systems. In the oil and gas industry, they are essential for pipelines, offshore platforms, and subsea equipment. Additionally, they play a crucial role in food processing, pharmaceuticals, paper and pulp industries, and construction. With their strength, corrosion resistance, and precise dimensions, Stainless Steel 904L Square Bars and Rods are indispensable in various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
