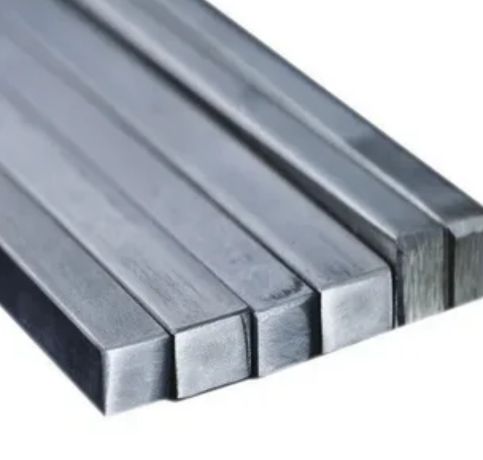

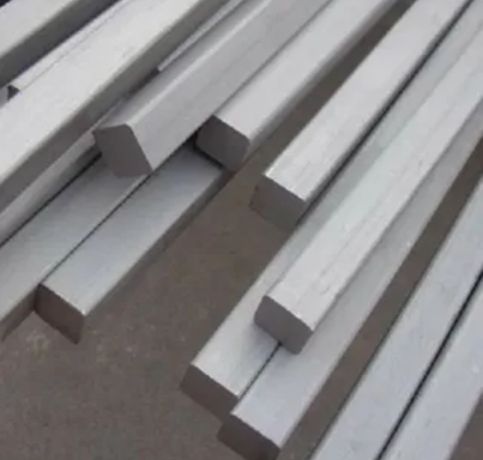

Anucha Metals, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Stainless Steel 316 Square Bars and Rods that are built to last. These products are designed for durability and corrosion resistance, ensuring they perform well over time. Renowned for their impressive resistance to pitting, crevice corrosion, and oxidation, especially in tough chemical and marine environments, these bars and rods are crafted with precision to meet international standards. Stainless Steel 316 is known for its exceptional strength and toughness, making it a perfect fit for demanding industrial applications. Anucha Metals caters to various industries, including chemical processing, marine, food and beverage, oil & gas, and pharmaceuticals, providing cost-effective, reliable, and high-performance stainless steel solutions for critical operations.
The composition of Stainless Steel 316 Square Bars and Rods includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, along with trace amounts of carbon, manganese, and silicon. This blend significantly boosts corrosion resistance, particularly against chlorides and acidic environments, while ensuring excellent mechanical strength. In terms of mechanics, they offer a tensile strength ranging from 485–690 MPa, yield strength between 170–310 MPa, and an elongation of up to 40%. The alloy is tough, durable, and resistant to stress corrosion cracking, with a low carbon content that guarantees weldability and stability even in high-temperature and corrosive settings.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316 | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 0.03 max | 0.75 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | – | – | 515 Min | 205 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 316 square bars are resistant to galvanic corrosion when used in environments with similar metals. However, when coupled with dissimilar metals, they can be susceptible to galvanic corrosion if exposed to electrolytes.
Stainless Steel 316 square rods are available in various sizes ranging from 1/8" to 6" or more, depending on the supplier. They are typically offered in finishes such as mill, polished, or brushed, based on customer requirements.
Yes, Stainless Steel 316 square bars are highly resistant to corrosion, making them suitable for underground applications. Their durability and resistance to rust make them ideal for use in harsh environments.
Stainless Steel 316 Square Bars and Rods are widely utilized in chemical and petrochemical equipment, heat exchangers, and piping systems that face harsh corrosive conditions. They are particularly suited for marine applications, such as shipbuilding, seawater systems, and offshore platforms. In the food processing and pharmaceutical sectors, they are essential for hygienic equipment and machinery. Moreover, they are also used in oil & gas, power generation, and architectural structures that demand strength, corrosion resistance, and long-lasting durability. Their versatility and reliability make Stainless Steel 316 Square Bars and Rods indispensable for challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
