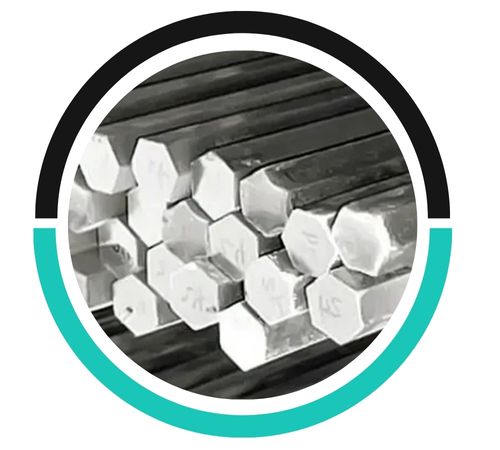

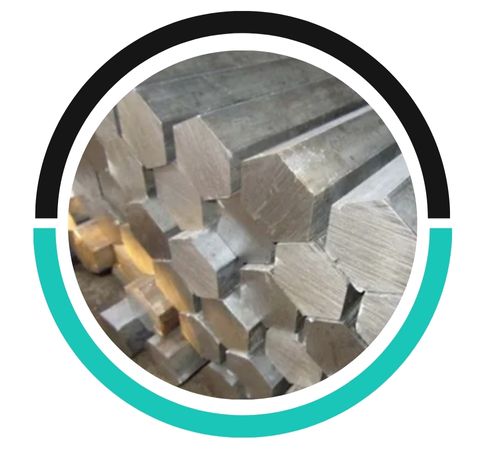

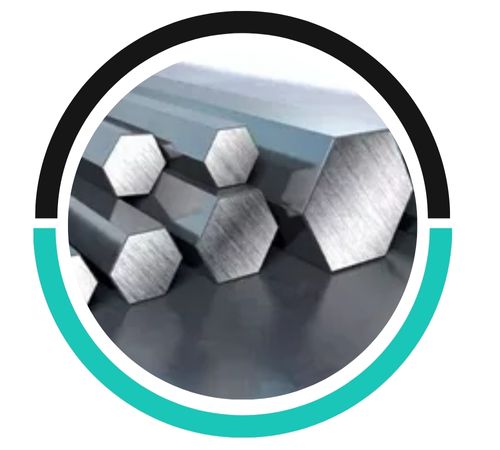

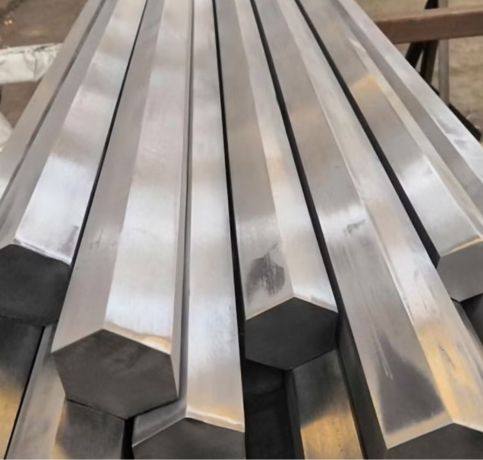

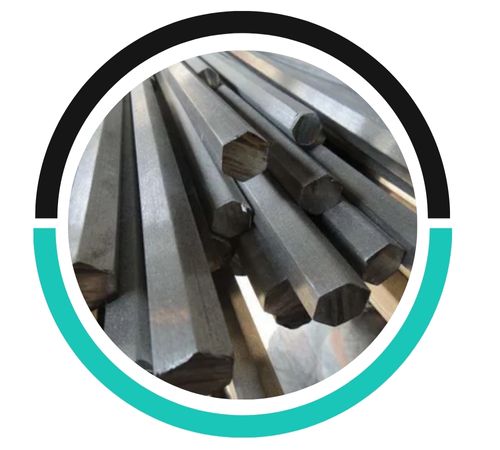

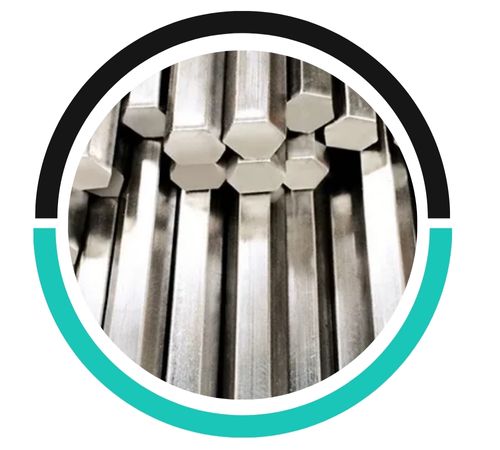

Anucha Metals, located in Bangkok, Thailand, is a reputable manufacturer and supplier known for its top-notch stainless steel products, including the Stainless Steel 317 Hex Bar/Rod. With a strong commitment to precision engineering and ensuring customer satisfaction, Anucha Metals has built a solid reputation for providing durable and corrosion-resistant materials suitable for various industrial applications. Thanks to cutting-edge technology and a dedicated team, the company guarantees high-quality products and timely deliveries both domestically and internationally. Their Stainless Steel 317 Hex Bars/Rods are particularly popular in demanding environments, delivering performance and reliability across multiple sectors.

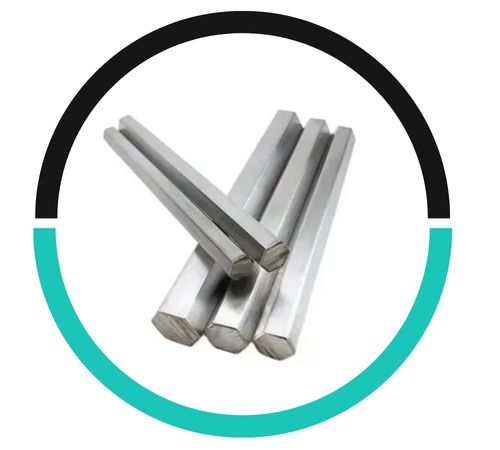

Stainless Steel 317 Hex Bar/Rod is an austenitic stainless alloy primarily made up of Chromium (18–20%), Nickel (11–15%), and Molybdenum (3–4%), along with trace amounts of Manganese, Silicon, and Carbon. This unique blend significantly boosts its resistance to corrosion, especially against chlorides and other industrial chemicals. On the mechanical side, it boasts a tensile strength of about 75 ksi (515 MPa) and a yield strength of 30 ksi (205 MPa), along with impressive elongation and toughness. These characteristics make it an excellent choice for applications that demand high resistance to chemical attacks and durability in high-temperature settings, particularly in marine and acidic conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317 | 8 | 1454 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 317 Hex Bar/Rod finds extensive use in industries that prioritize high corrosion resistance and strength, such as chemical processing, petrochemical plants, pulp and paper production, food processing, and marine applications. Its remarkable resistance to sulfurous, acetic, and citric acids makes it ideal for heat exchangers, evaporators, and storage tanks. Additionally, it’s utilized in flue gas scrubbers, pharmaceutical equipment, and textile machinery. The hexagonal shape enhances grip and torque, making it a practical choice for various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
