Anucha Metals is a well-respected manufacturer and supplier of Tantalum Bars and Rods based in Bangkok, Thailand. We pride ourselves on delivering high-performance products that are tailored for the most demanding industrial applications. Our tantalum bars and rods are celebrated for their exceptional corrosion resistance, impressive melting point, and remarkable durability, making them perfect for use in the chemical, electronic, and aerospace sectors. Crafted with precision and in line with international standards, these products ensure outstanding performance even in the harshest environments. At Anucha Metals, we are dedicated to providing dependable and long-lasting tantalum solutions that cater to the diverse needs of our global clientele.
Our Tantalum Bars and Rods are made from high-purity tantalum, a refractory metal known for its excellent resistance to chemical attacks and oxidation. With a melting point soaring around 3017°C, tantalum also boasts great ductility and solid thermal and electrical conductivity. Mechanically, these bars and rods deliver high tensile strength, toughness, and stability in dimensions, even when faced with extreme temperatures and corrosive conditions. Their non-reactive nature to most acids and chemicals makes them a reliable choice for critical applications where traditional materials might fall short.
| Specification | ASTM B365, ASME SB365 |

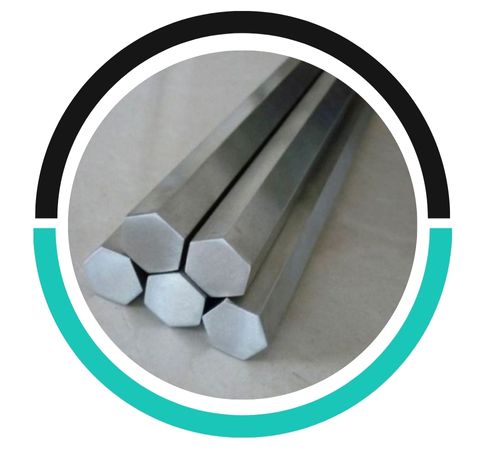

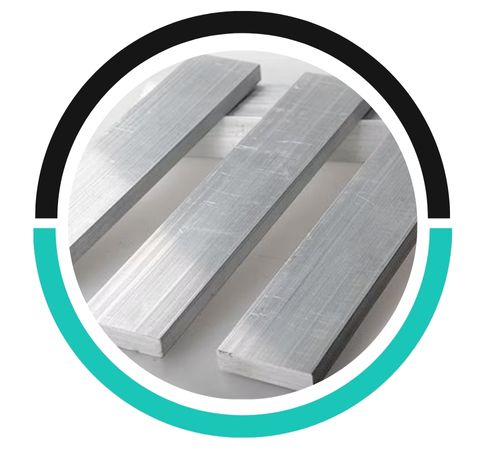

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Type | Ta | W | Nb |
|---|---|---|---|
| R05200 / R05400 | Unalloyed (Pure) | – | – |
| R05252 | 97.5 % | 2.5 % | – |
| R05255 | 90 % | 10 % | – |
| R05240 | 60 % | – | 40 % |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, tantalum bars and rods are highly corrosion-resistant, especially to acids, alkalis, and high temperatures, making them ideal for harsh environments like chemical processing and aerospace applications.
Annealed tantalum bars and rods are heat-treated for improved ductility and softness, while non-annealed ones are harder and more brittle, retaining their as-cast properties. Annealed versions are easier to shape.
Tantalum Bars and Rods find their place in industries that demand outstanding resistance to corrosion and high-temperature performance. In chemical processing, they are utilized in heat exchangers, reaction vessels, and piping systems that come into contact with strong acids. In the electronics field, tantalum rods are essential for producing capacitors and high-performance components. The aerospace and defense sectors rely on them for turbine blades, rocket parts, and other high-temperature structural applications. With their unmatched blend of strength, durability, and corrosion resistance, tantalum bars and rods are vital for specialized and critical industrial operations.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
