Anucha Metals, a reputable manufacturer and supplier located in Bangkok, Thailand, proudly offers top-notch Nitronic 60 Bars and Rods that adhere to international standards for performance, strength, and durability. Renowned for their precision and reliability, Anucha Metals ensures that their Nitronic 60 products meet the needs of industries that demand outstanding wear resistance and corrosion protection. Also known as UNS S21800, Nitronic 60 is an austenitic stainless steel specifically engineered to provide exceptional resistance to galling, fretting, and wear, while also excelling in high-temperature oxidation resistance. These bars and rods find extensive use in the chemical, marine, automotive, and aerospace sectors.
The composition of Nitronic 60 Bars and Rods primarily includes iron, with 16–18% chromium, 8–9% nickel, 7–9% manganese, and 3.5–4.5% silicon, along with carefully controlled amounts of nitrogen, molybdenum, and carbon. This alloy boasts a tensile strength of approximately 690 MPa, a yield strength of around 345 MPa, and impressive elongation, ensuring both toughness and durability. Its elevated levels of silicon and manganese enhance wear and galling resistance, while nitrogen contributes to improved mechanical strength. Notably, Nitronic 60 maintains excellent corrosion resistance, comparable to that of 316 stainless steel, even in challenging marine and chloride environments.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |
| Nitronic 60 Square bar size | 4 to 100mm |

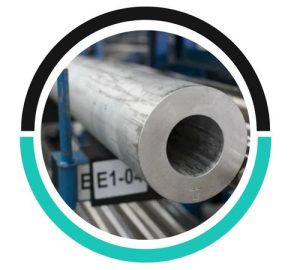

| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

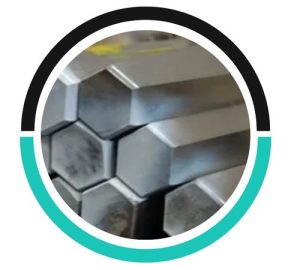

| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

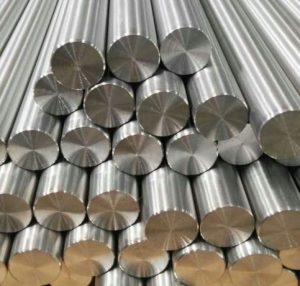

| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 Bars and Rods are widely utilized in industries that require robust resistance to wear, friction, and corrosion under demanding operating conditions. In the chemical sector, they are employed for valves, pumps, and fasteners that come into contact with corrosive substances. The marine industry uses them for shafts, fittings, and structural components exposed to seawater. In the automotive and aerospace fields, they are essential for engine parts, bushings, and bearings where galling resistance is crucial. Additionally, they play a vital role in power generation and oil & gas applications for high-performance equipment. With their remarkable combination of wear resistance, strength, and corrosion protection, Nitronic 60 Bars and Rods are the go-to choice for challenging engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
