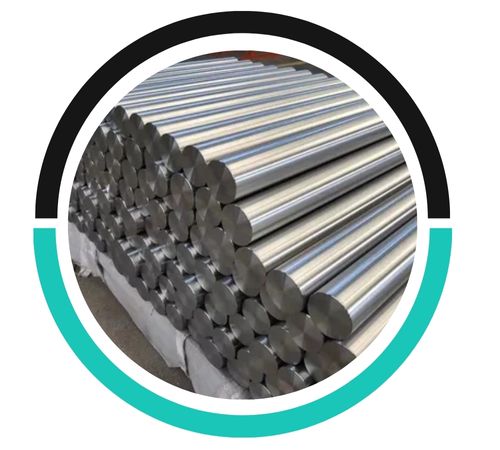

Nimonic 80A Bars and Rods

Anucha Metals is a well-respected manufacturer and supplier located in Bangkok, Thailand, specializing in high-quality Nimonic 80A Bars and Rods tailored to meet the needs of critical industries. Renowned for their durability, strength, and precision, these bars and rods are designed to perform exceptionally well even in extreme operating conditions. Nimonic 80A is a nickel-chromium alloy enhanced with titanium and aluminum, offering outstanding resistance to oxidation and corrosion. Anucha Metals is committed to maintaining strict quality standards, ensuring timely deliveries, and providing customized solutions, making them a trusted partner for aerospace, power generation, petrochemical, and high-temperature engineering applications.

Nimonic 80 A Rods Price in Nonthaburi, Pure Nimonic 80 A Round Bars Thailand, Nimonic 80 A Rectangular Bars Supplier in Thailand, Nimonic 80 A Rectangular Rods Exporter in Thailand, UNS N07080 Pure Nimonic 80 A Round Bars Stockist in Bangkok, DIN 2.4631 Nimonic 80 A Hex Bars Supplier in Thailand, Nimonic 80 A Cold Drawn Round Bars Distributor in Thailand, Nimonic 80 A Rods Stockist Nonthaburi

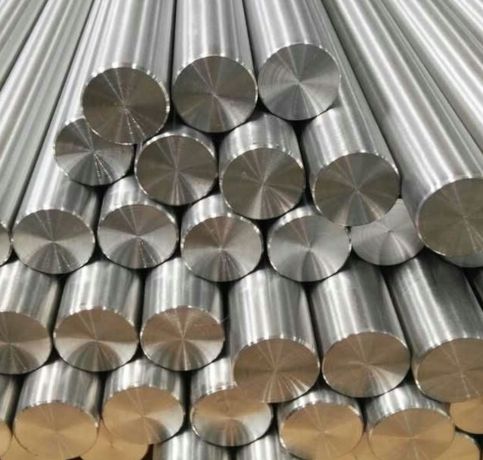

Nimonic 80A Round Bars

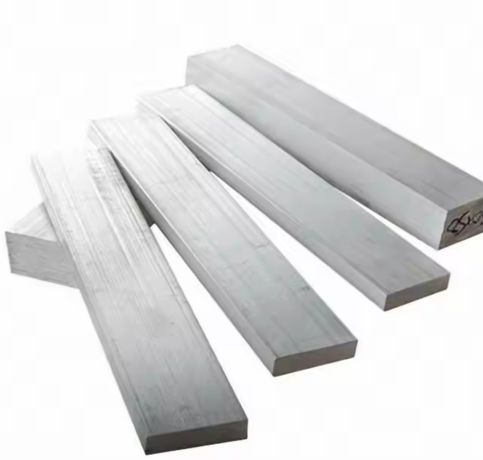

Nimonic 80A Rectangular Bars

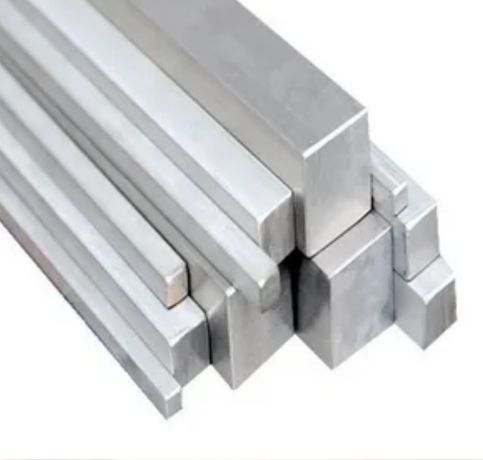

Nimonic 80A Square Rods

What is Nimonic 80A Bars and Rods?

The Nimonic 80A Bars and Rods primarily consist of nickel and chromium, with carefully controlled amounts of titanium, aluminum, and carbon to boost performance. This alloy is known for its excellent resistance to oxidation and scaling at high temperatures while retaining remarkable mechanical strength. It boasts a tensile strength of around 900 MPa, a yield strength of about 600 MPa, and an elongation of 20%. The unique combination of high creep resistance, stability, and strength retention makes Nimonic 80A an ideal choice for critical high-temperature applications in demanding industrial settings.

Nimonic 80A Bars Price List in Thailand, Nimonic 80A Round Bars Exporter Stockist in Chiang Mai, Stockist of Nimonic 80A Round Bars in Chiang Mai, Pure Nimonic 80A Bars Weight Chart, Nimonic N07080 Rods Dealer in Pattaya, Nimonic 80A Round Bars Manufacturer in Pattaya, Nimonic 80A Square Bars Supplier in Rayong, Pure Nimonic 80A Flat Bars Price List in Bangkok, Nimonic 80A Rectangular Bars Supplier in Nonthaburi

Nimonic 80A Bars and Rods Specification

Standards	Designation
ASTM	B637

Length	Diameter
2-12m	6mm-500mm

Type	Certification
Nimonic 80A Round Bar	ISO 9001:2008

Chemical Compositions of Nimonic 80A Bars

Weight %	Ni	Cr	Ti	Al	C	Si	Cu	Fe	Mn	Co	B	Zr	S
Alloy 80A	Bal	18.0-21.0	1.8-2.7	1.0-1.8	0.10 max	1.0 max	0.2 max	3.0 max	1.0 max	2.0 max	0.008 max	0.15 max	0.015 max

Nimonic 80A Bars Mechanical Properties

Material	Condition	Ultimate Tensile Strength ksi	Yield Strength ksi	Elongation on 4D (min)	Hardness min
Alloy 80A	Solution Annealed & Precipatation Treated (aged)	145	90	20	300 HV

Physical Properties of Nimonic 80A Bar

Density	8.19 g/cm3
Melting point	1320-1365°C

You Need Our Support, to Have Any Projects?

Test Certificate

Why Anucha Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Nimonic 80A Bars and Rods Types

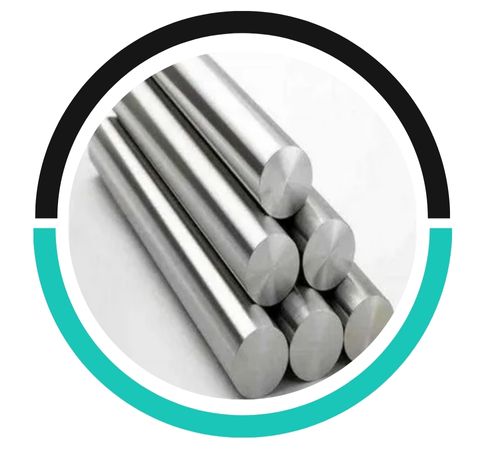

Nimonic 80 A Round Bars Size Chart, Nimonic 80 A Polished Rods Dealer in Pattaya, Nimonic Bars 80 A Supplier in Thailand, Nimonic 80 A Hollow Rods Price List in Bangkok, Pure Nimonic 80 A Rectangular Bars Supplier in Chiang Mai, Nimonic 80 A Hexagonal Bars Exporter in Pattaya, Nimonic 80 A T-Bars Exporter in Thailand, Pure Nimonic 80 A Flat Rods Exporter in Rayong, Nimonic 80 A Flat Bars Thailand, Nimonic N07080 Hollow Round Bar Manufacturer in Nonthaburi

Frequently Asked Questions (FAQ)

Are Nimonic 80A Rod Susceptible To Galvanic Corrosion?

Yes, Nimonic 80A, a nickel-based alloy, can be susceptible to galvanic corrosion when in contact with materials that have significantly different electrochemical potentials, especially in the presence of an electrolyte.

Can Nimonic 80A Bar Be Welded?

Yes, Nimonic 80A bar can be welded. It is commonly welded using techniques like TIG or MIG welding, with preheating and post-weld heat treatment to prevent cracking.

What Sizes and Finishes Are Available for Nimonic 80A Bar ?

Nimonic 80A bars are available in various sizes, typically from 6mm to 250mm in diameter, and lengths up to 6 meters. Common finishes include bright, polished, and cold-drawn.

Nimonic 80A Bar and Rod Uses

These Nimonic 80A Bars and Rods are widely utilized in industries that require exceptional high-temperature strength and corrosion resistance. In aerospace, they play a crucial role in manufacturing turbine blades, exhaust systems, and components for jet engines. In the power generation sector, they are used in gas turbines, valves, and heat treatment equipment. Additionally, this alloy finds applications in petrochemical plants, nuclear reactors, and automotive exhaust systems, where exposure to extreme heat and stress is a regular occurrence. Their ability to resist oxidation, scaling, and creep deformation ensures they deliver long-lasting performance, making them a reliable material for challenging industrial and engineering applications.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
