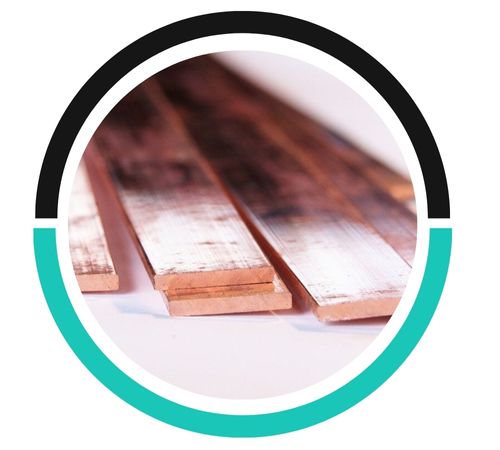

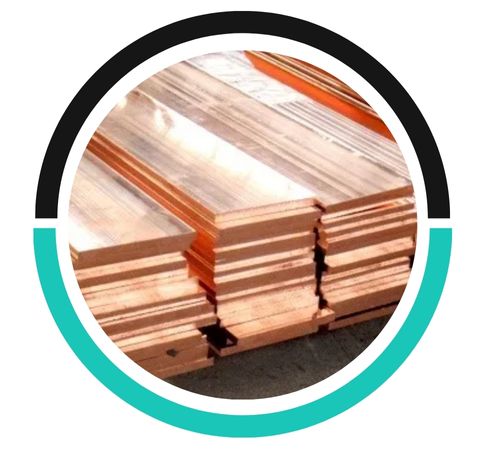

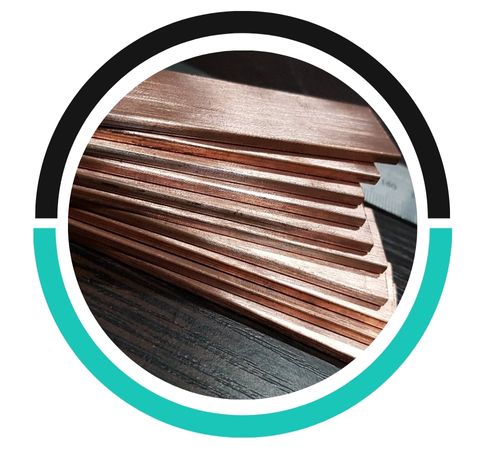

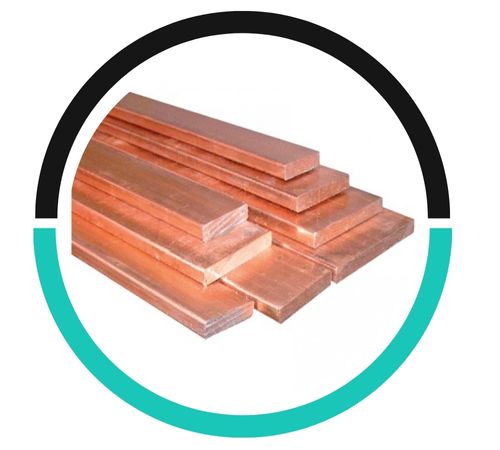

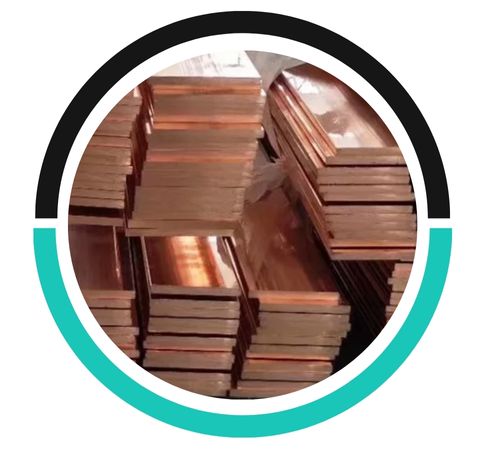

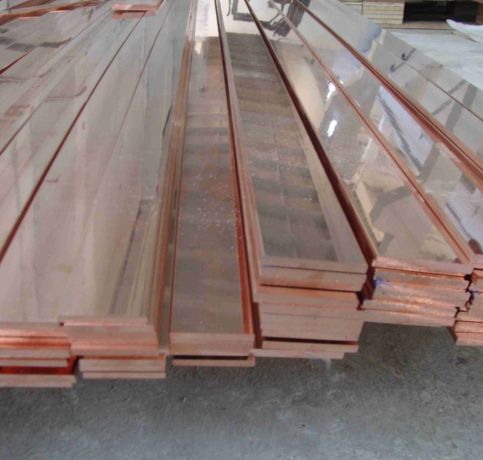

Anucha Metals stands out as a reliable manufacturer and supplier of Copper Nickel Rectangular Bars right in the heart of Bangkok, Thailand. They take pride in delivering top-notch products that cater to a variety of industrial needs. What sets their Copper Nickel Rectangular Bars apart is their remarkable resistance to seawater corrosion, along with their durability and strength. Each bar is crafted with precision to align with international quality standards, ensuring that customers can count on their performance. Thanks to advanced manufacturing techniques and rigorous quality control, Anucha Metals has built a solid reputation as a trusted source for Copper Nickel Rectangular Bars, serving both local and global markets.
These bars are primarily made up of copper (about 70–90%) and nickel (10–30%), with a touch of iron and manganese added to enhance their strength and resistance to corrosion. They excel in resisting seawater, biofouling, and stress corrosion cracking. On the mechanical side, they offer a balanced mix of tensile and yield strength, along with good toughness and ductility. Plus, they maintain excellent thermal stability and conductivity, making them reliable in high-temperature and marine settings. This unique blend of mechanical and corrosion-resistant properties makes them perfect for critical engineering and structural applications.
| Standard | ASTM B111, ASME SB111 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Rectangular Bars are customizable in terms of size, thickness, length, and alloy composition to meet specific requirements for various applications. Customization ensures optimal performance in marine, chemical, and industrial environments.
Copper Nickel Rectangular Bars find their way into various industries that prioritize corrosion resistance, durability, and reliability. In the marine sector, they’re essential for seawater piping systems, shipbuilding, condensers, and heat exchangers. The oil and gas industry utilizes them for offshore platforms, pipelines, and desalination plants. In power generation, they play a vital role in cooling systems and heat transfer equipment. Chemical processing industries depend on them for managing corrosive fluids and components. Additionally, they’re used in structural frameworks, architectural designs, and food processing equipment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
