Anucha Metals is a reliable manufacturer and supplier of Copper Bars and Rods based in Bangkok, Thailand. We take pride in offering top-notch non-ferrous products that are celebrated for their outstanding conductivity, durability, and versatility. Our copper bars and rods are crafted with precision, adhering strictly to international standards to guarantee dimensional accuracy, consistent quality, and a long lifespan. Thanks to their superior electrical and thermal conductivity, corrosion resistance, and excellent machinability, these products find applications across a variety of industries. Anucha Metals caters to the electrical, construction, marine, power generation, plumbing, and general engineering sectors, providing dependable copper solutions tailored to meet diverse industrial needs.
Our Copper Bars and Rods are made from high-purity copper, which ensures exceptional electrical and thermal conductivity, along with remarkable ductility and toughness. This composition not only offers good corrosion resistance but also enhances machinability, making them ideal for both electrical and structural applications. With high tensile strength and wear resistance, these products are built to last, even in demanding environments. These qualities make copper bars and rods some of the most versatile and widely utilized non-ferrous materials available.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|

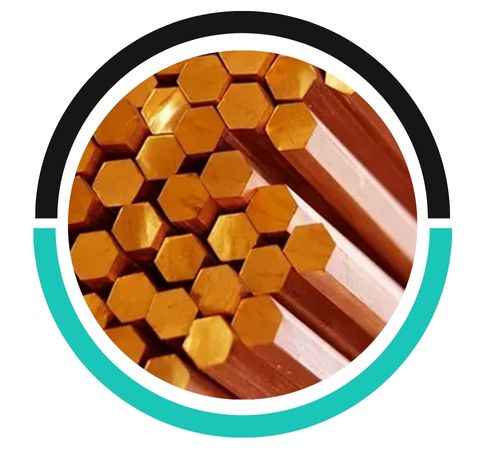

| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |
| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
In various industries that require strength, conductivity, and corrosion resistance, Copper Bars and Rods are extensively used. In the electrical sector, they are crucial for bus bars, conductors, terminals, and connectors. The construction and plumbing industries rely on them for fittings, pipelines, roofing, and decorative elements. In marine and power generation, they are used in condensers, heat exchangers, and components that face moisture and seawater. General engineering applications include fasteners, bearings, couplings, and precision-machined parts. Their perfect blend of strength, conductivity, and durability makes copper bars and rods essential for modern industrial and commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
