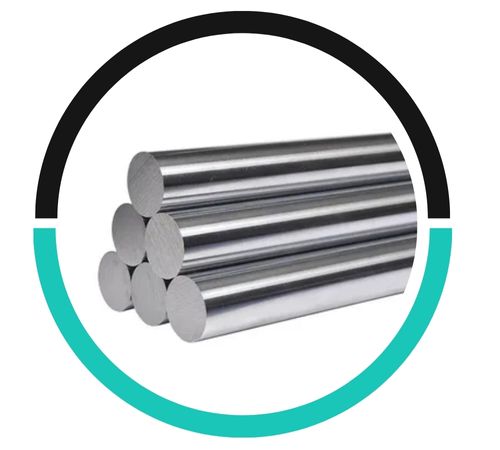

Anucha Metals, a well-respected manufacturer and supplier based in Bangkok, Thailand, has earned a solid reputation for delivering top-notch Stainless Steel Round Bars and Rods to clients both locally and internationally. These products are celebrated for their precision, durability, and strict adherence to global quality standards, making them a trusted choice across various industries. The strength, corrosion resistance, and exceptional finish of Stainless Steel Round Bars and Rods make them ideal for demanding applications. With a strong commitment to excellence, Anucha Metals consistently provides reliable stainless steel solutions for sectors like engineering, marine, construction, petrochemical, and more.
These Stainless Steel Round Bars and Rods are made from a blend of iron, chromium, nickel, and varying levels of molybdenum and carbon, depending on the specific grade. This unique composition boosts their resistance to corrosion, enhances mechanical strength, and allows them to endure oxidation even at high temperatures. Their mechanical properties include tensile strength ranging from 500 to 750 MPa, yield strength around 200 to 300 MPa, and impressive ductility. Additionally, these bars and rods showcase outstanding toughness, machinability, and weldability. With a perfect balance of mechanical and chemical properties, Stainless Steel Round Bars and Rods are incredibly reliable for industrial applications that demand durability, resilience, and long-lasting performance.
| SS Bar Standard | ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Stainless Steel Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round bar size | Diameter: 3-~800mm |
| Stainless Steel Hex Bar size | 2-100mm A/F |
| SS Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Stainless Steel Square bar size | 4 to 100mm |
| SS Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| SS Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Stainless Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A276 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| SS Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Stainless Steel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| SS Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A276 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SUS T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Stainless Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A276 Type Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| SS Rod Processing | Bar cutting to 650mm |
| Stainless Steel Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| ASTM Grade | Carbon | Manganese | Silicon | Sulfur | Phospherous | Chromium | Nickel | Molybdenum | Other |
| 304 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | – | – |
| 316 | 0.08 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.0 3.0 | – |
| 317L | 0.035 max | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 3.0 4.0 | – |
| 310 S | 0.08 max | 2.00 max | 1.5 max | 0.030 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 3.0 4.0 | – |
| 347 H | 0.04 0.10 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.08 | 2.00 max | 0.75 max | 0.030 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | – | 5C 0.70% |
| Grade | Elongation | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point |
| SS 202 | 40 % | 8.0 g/cm3 | 515 MPa | 275 MPa | 1454 °C (2650 °F) |
| SS 303 | 50 % | 55% | Psi – 85,000 | Psi – 45,000 | Rb 180 |
| SS 304 | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 304L | 40% | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) |
| SS 316 | 35 % | 8.0 g/cm3 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) |
| SS 316L | 40 % | 8.0 g/cm3 | 485 Min | 170 Min. | 1400 °C (2550 °F) |
| Diameter | Weight Chart | Dia | Weight Chart |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3mm | 0.06 | 1/8″ | 0.06 |
| 4mm | 0.10 | 3/16″ | 0.14 |
| 5mm | 0.16 | 1/4″ | 0.25 |
| 6mm | 0.22 | 5/16″ | 0.39 |
| 7mm | 0.30 | 3/8″ | 0.56 |
| 8mm | 0.40 | 7/16″ | 0.77 |
| 10mm | 0.62 | 1/2″ | 1.00 |
| 12mm | 0.89 | 9/16″ | 1.22 |
| 14mm | 1.22 | 5/8″ | 1.56 |
| 15mm | 1.40 | 11/16″ | 1.89 |
| 16mm | 1.59 | 3/4″ | 2.25 |
| 18mm | 2.01 | 7/8″ | 3.07 |
| 20mm | 2.48 | 1″ | 4.03 |
| 22mm | 3.00 | ||
| 24mm | 3.57 | ||
| 25mm | 3.88 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
| Type | SIZES in milimeter | SIZES in inches | Tolerance |
|---|---|---|---|
| Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
| Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
| Peeled nd Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9 to h11 |
Stainless steel bars and rods come in several types: round, square, hexagonal, flat, angle, forged, and cold-drawn, each suited for different applications like structural, manufacturing, and machining purposes.
Stainless steel round bars are known for their high strength, excellent durability, and resistance to corrosion, making them ideal for harsh environments. Their longevity ensures minimal maintenance and long-term performance.
Yes, stainless steel round bars are environmentally friendly. They are highly recyclable, durable, and resistant to corrosion, reducing the need for replacements and minimizing waste. Their longevity promotes sustainability.
In industries where strength, precision, and corrosion resistance are crucial, Stainless Steel Round Bars and Rods are widely utilized. In construction, they serve as frameworks, supports, and reinforcements. The automotive and engineering sectors rely on them for shafts, fasteners, and machine components. In marine applications, they are essential for shipbuilding, propeller shafts, and seawater systems. Chemical and petrochemical plants use them in equipment that faces corrosive environments, such as heat exchangers, reactors, and pressure vessels. They also play a vital role in oil and gas, food processing, pharmaceuticals, and heating systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Anucha Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Bangkok, Thailand
